JDM-76 light

Method of purchase https://item.taobao.com/item.htm?spm=a1z10.3-c.w4002-10058254375.10.tLfgrq&id=21900079797

Model with light for Yutian house trailer. It can also be used for various types of military vehicles, truck model.
List of accessories: a set of lights, bar buckle 12, tie 12, 3M double-sided adhesive a, Y line two

Product Features: Full simulation designed to make your car more realistic and more dynamic,
Just a second gear channel can achieve double the emergency flashing lights, easy control operation switch fog lights, dome light, headlights
Channel reverse phase easier to set installation
An increase of reversing "BIBI" sound (optional)
Increased tail carriage turn lights, down lights, brake lights interface (optional)

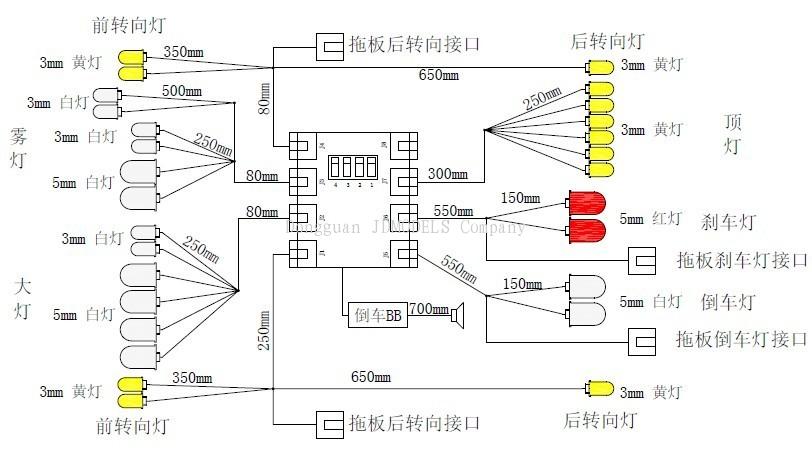

First, the light control system installation diagram:
When you install, set different functions lamps into the interface can be shown in the figure
Connect the receiver channel servo control lamp group: as shown

1, the control panel lamps servo cable (the interface identified as blue lines) into the Y line receiver CH1 ST direction of the channel, and then the servo cable car into another line interfaces Y
2, the control panel lamps servo cable (interface standards Su red line) into CH2 TH throttle cable channel Y receiver, A: oil truck, the car's steering gear cable into the Y line another interface, B: tram, the car power transfer control line connector into another interface Y lines.
3, the control panel lamps servo cable (interface identifier yellow) directly into the receiver AU1X (CH3) or AUX2 (CH4), if more than 4-way controller can be used CH5 / 6/7/8 are It can be used to control fog lights, and emergency switch double flash mode dome light, headlights entry

Third, the product debugging:

1, turn signal when turning left to play, the left turn signal light control system flashing yellow light, when the vehicle traveling direction and turn signals indicating the contrary, find the control board DIP switches to "1" to complete the toggle switch forward and reverse settings. If a direction of light has been flashing, please make a correction direction of the channel on the remote control to fine-tune until you can not flash.

2, down lights, brake lights when the vehicle is reversing reversing lamp bright, bright lights killed when the vehicle is braking. If the vehicle traveling direction and the lights opposite directions, find the control board DIP switch "2" to complete the toggle switch forward and reverse settings.

3, the switch fog lights, ceiling lights, headlights and emergency double flash operation, the main operation switch channels.


A switch fog lamps, ceiling lights, headlights: from the ON-OFF-ON Toggle consecutive first turned on the dome light and fog
From ON --- OFF --- ON Toggle second consecutive open headlights
From ON --- OFF --- ON toggle third consecutive Close headlights
From ON --- OFF --- ON toggle fourth consecutive Close fog lights with ceiling

B emergency double flash on and off: double flash is turned on, the switch is in the OFF position for 2 seconds to automatically double flash state
Double flash is turned off, the switch in the ON position for 2 seconds to automatically exit the double flash status
