JDM-22 16MM inner diameter of the double-acting cylinders Micro

Method of purchase https://item.taobao.com/item.htm?spm=a1z10.3-c.w4002-10058254375.9.MnC1Vu&id=22851632061

16MM inner diameter of the double-acting cylinder, stroke existing 85MM total length 150MM, 107MM total length 172MM, 116MM total length 180MM, 146MM total length 210MM. The outer diameter of the cylinder end cap 24MM, piston rod diameter 8MM, upgrade more higher simulation accuracy flange structure.

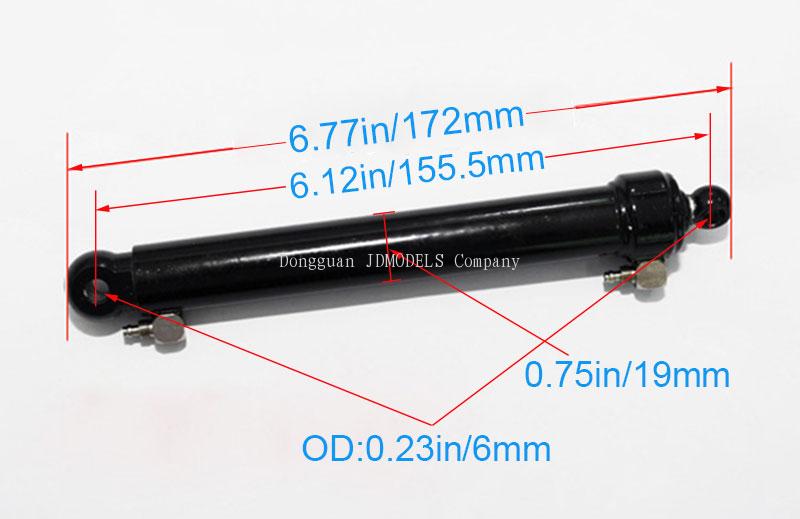

Wall diameter 19MM, cylinder stroke 116MM, plus front and rear ball head total length 180MM, pitch 165MM, be customized in terms of their own long cylinder
Total length = stroke + 65MM, installation pitch = stroke + 49MM, customized itinerary within 150MM additional costs 100 yuan, 200 yuan 150-300 additional cost. Comes with standard mini-connector is M5-4HL two.
