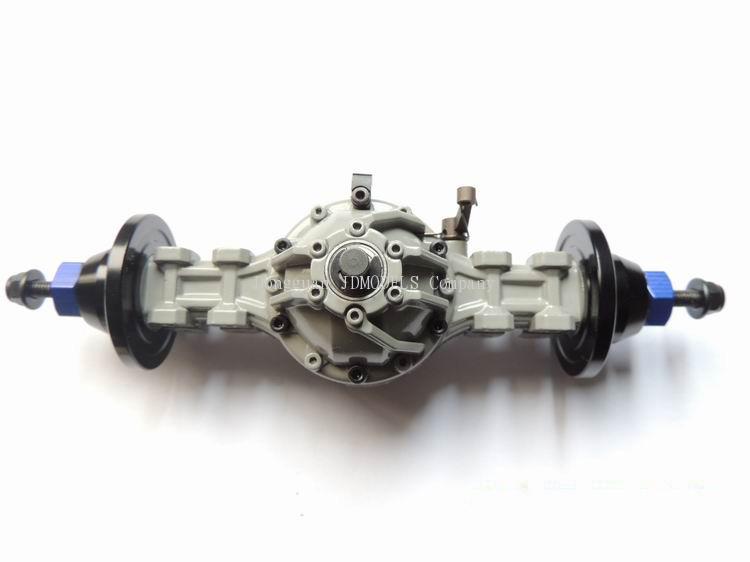

JDM-89 Metal rear axle differential lock
Method of
purchase https://item.taobao.com/item.htm?spm=a1z10.3-c.w4002-10058254375.9.5eXMGk&id=44222559177
1:14 dump trucks, trailers, tractors, container trucks, dump trucks, rear axle locking differential with a military card metal.
Zinc alloy shell casting, powder metallurgy steel gear (if not intentionally damage, free replacement tooth sweep after shipping to the buyer), the drive tooth modulus M1.2, can withstand greater impact loads and more torque.
Differential lock normally-closed structure, poor steering lock step operation, do not worry about damage to the steering force for a long time, spline engagement by spring forced into.
Accessories; cable section, casing section, a lock fixed zipper, M2-6 a screw

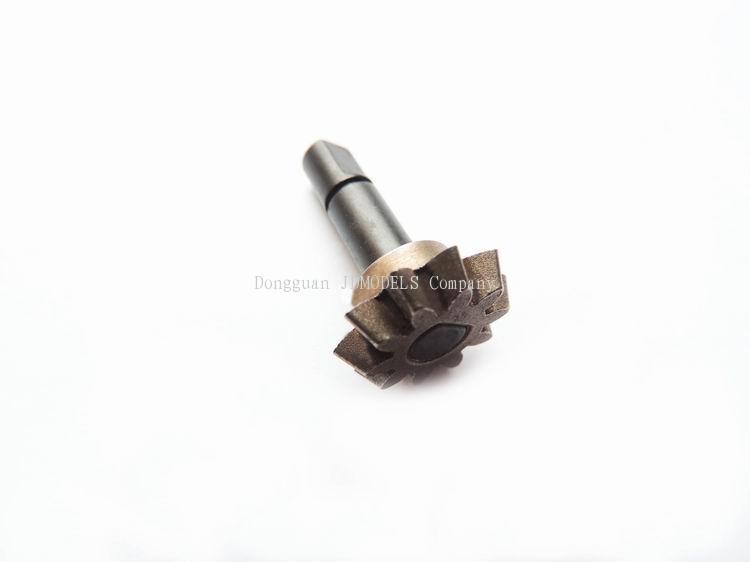

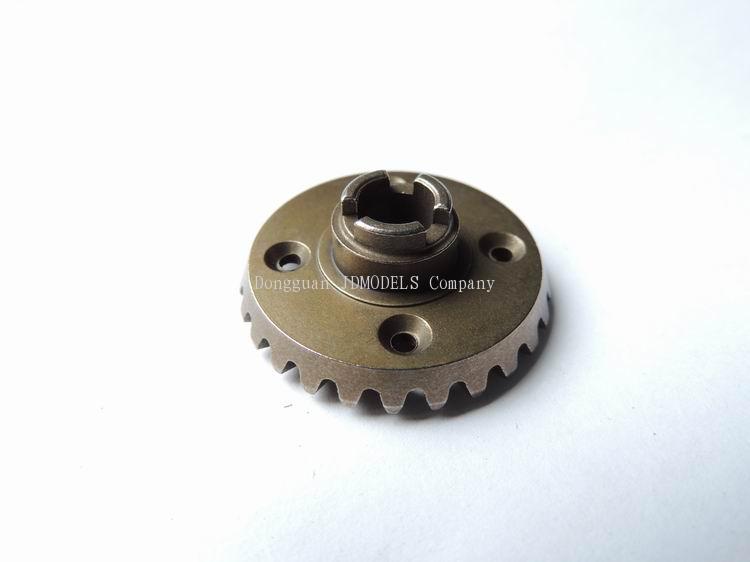

Reduction ratio, 1: 2.6 drive pinion 10 tooth modulus M1.2, the driving gear 26 tooth modulus M1.2
At present, only dark gray.

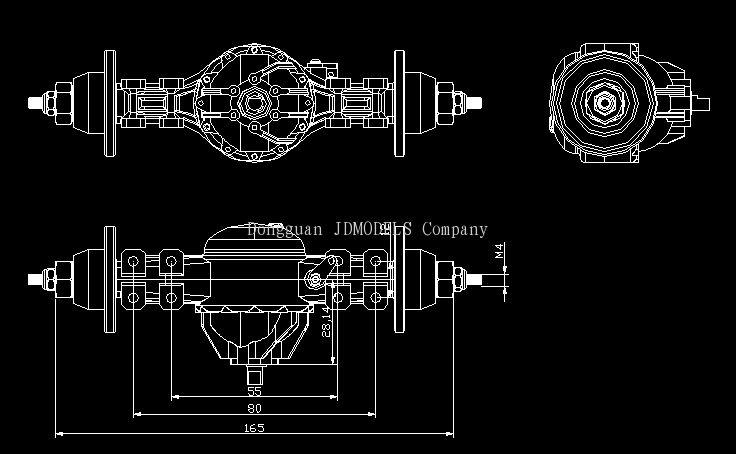

Specific parameters are as follows:
